NICOR DLQ5-10-120-3K-WH LED Square Downlight Kit
Alternative Views:
Our Price:
$
69.99
Product Code:
DLQ5-10-120-3K-WH
Trim Type
*
:
Smooth (Normal) - DLQ
Baffle (BF) - DLQ
DISCONTINUED
Description
Technical Specs
Videos & Manuals
NICOR DLQ5-10-120-3K-WH LED Square Downlight Kit
Includes HOUSING, MODULE, and TRIM
For a Formal Estimate Call: 888-560-0759 or E-Mail:
[email protected]
The NICOR DLQ5-10-120-3K-WH is part of the NICOR D-Series. The DLQ5 is an architectural grade 5” square recessed LED downlight with a sleek modern style. Everything you love about NICOR LED Downlights is now available in an aesthetically pleasing square design with interchangeable trims. Engineered to boost energy efficiency, the LED light engine draws only 16 watts while improving light output to over 1000 lumens. This luminaire delivers true color accuracy with 90+ CRI as well as flexible dimming capabilities. The D-Series LED luminaires are a perfect choice for commercial, retail, institutional, and residential applications. The DLQ5 also meets industry standards like Title 24, Energy Star and CEC making it a great design choice. The NICOR DLQ5-10-120-3K-WH Square Downlight Kit utilizes LED technology, which cuts down electrical costs and bulb replacement so that you save money. Switching to LED pays for itself in energy savings! The NICOR DLQ-5-10-120-3K-WH is created for new construction use, including the housing, module, and trim. The NICOR DLQ5-10-120-3K-WH is also available with a baffle trim (DLQ5-10-120-3K-WH-BF). If you would like to purchase the baffle version, please select it above the "Add to Cart" button before checking out.
Trim:

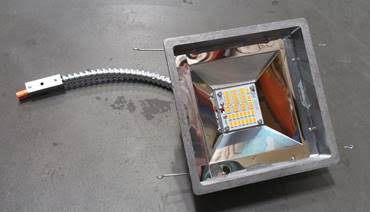

Module:

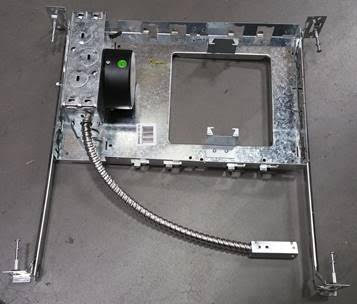

Housing:
Our LED Products Come with an Outstanding 5-Year Warranty!
Utilizes high performing LEDs with greater than 90 CRI and an R9 greater than 50
Dimmable to 10% with most standard dimmers
Thermally protected, high efficiency driver standard
Operating temperature rating of 0°F to 120°F (-18°C – 49°C)
Input voltage of 120V
L70 rated for greater than 35,000 hours
LM-79, LM-80 testing performed in accordance with IESNA standards.
Galvanized steel frame
Interior high reflective finish
Smooth White plastic trim
5-year Warranty
Downloads:
Installation Instructions
Sell Sheet
Spec-Sheet
Warranty Information
Features
Lumens:
1100 Lumens
Watts:
16.10
LPW:
68
CCT:
3,000K
CRI:
90
Input Voltage:
120V
Certifications:
cULus
Energy Star
T24
